Until the late 1950s, all doctor blades were of the metal type In the late 1950s a phenol formaldehyde resin called Bakelite was taken into use as a doctor blade material It took many years for this material to become accepted for doctor blades since its cost in those early days was relatively high compared to metal.

Doctor blade angle gauge. Blade Holders G2 Pro Blade Holder;. A precise adjustment doctor blade angle is crucial for an optimal contact zone The correct installation of the doctor blade into the doctor blade holder For best results, the blade holder and backup blade (if used), must be cleaned carefully and be in good condition The Doctor Blade must be mounted absolutely straight, without waves To prevent. Products/Services for Doctor Blade Angle Indicators Dimensional Indicators and Comparators (2 companies) Dimensional indicators and comparators are instruments for comparative measurements where the linear movement of a precision spindle is amplified and displayed on a dial or digital display.

Angle gauge Posted by Eugene Sanders on Jun 24th Useful, functional and accurate Posted by Dr David J Matheson on Nov 2nd 19 Still great!!. Daetwyler Steel doctor blades should be made up of quality steel with very few impurities It is important that the doctor blade manufacturer does metallurgical testing to ensure quality standards are met Most steel blades used are 004", 006", 008" or 010" in thickness depending on the rigidity that is desired. Here you have a short tutorial with useful hints.

Ink Carts Service Carts;. Doctor blades are used to clean rolls and remove stock accumulations, water, pitch, and filler buildup Since paper, tissue, chemical, food, beverage, corrugating, construction, metals, textiles and nonwovens, it is important to make sure each. We always got the question How to adjust the doctor blades for rotary pad printing automations perfectly?.

Usually the target is about a 30° angle For an enclosed doctor blade chamber this is already set at a predetermined angle For a reverseangle doctor blade a 3035° range is recommended Ultimately the operator should set the blade angle to ensure metering is optimized for the given metering system, anilox cylinder and ink type. An angle that’s too high can give doctor blade vibration problems It is recommendable to use a contact angle between 5565 degrees A correctly set doctor blade angle normally allows as well a lower doctor blade pressure The Swedev “Doctor Blade Angle Gauge” is the tool that helps you control contact angle setting. Katzco Chainsaw Sharpener File Kit Contains 5/32, 3/16, and 7/32 Inch Files, Wood Handle, Depth Gauge, Filing Guide, and Tool Pouch for Sharpening and Filing Chainsaws and Other Blades 45 out of 5 stars 2,579.

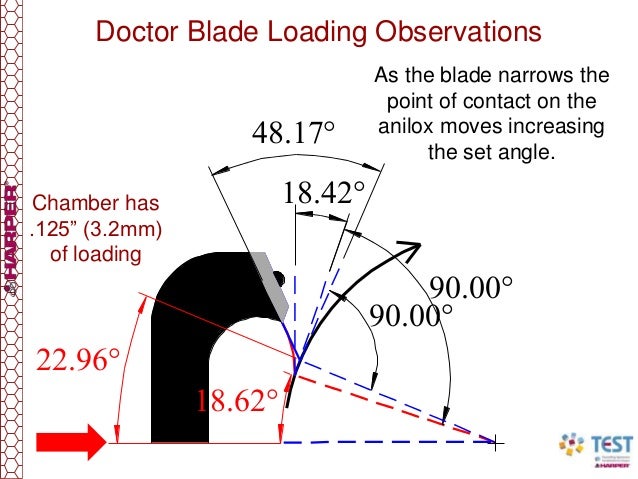

The angle gauge is produced in a size that the operator can keep it in their pocket and is handy to use when changing doctor blades The PrimeBlade Angle Gauge comes in two sizes One from circumference 300mm to 785mm and the other from circumference 785mm to > 6280mm It is delivered in a plastic pouch for protection. The contact angle should be 30° tangent to the anilox roll circumference In reverse angle and chamber blade applications, the doctor blade angle should be between 28° and 32° If the blade angle drops below 28°, a larger part of the blade’s edge will come into contact with the roll. Description Applications Setting and maintaining the proper doctor blade angle is critical to maximize doctoring performance The AngleSet gauge is used to set the proper angle for doctor blades and scrapers for improved doctoring performance Applications include creping, drum.

Blade Holders G2 Pro Blade Holder;. Blade angle is critical for a doctor, and is obtained by using a measuring gauge Set the angle at an accuracy of 1° The angles on the front and back sides must match at an accuracy of 05° Steam heated crosswalk runs underneath the doctor beam (view from tend side). A method and system of measuring a deflected doctor blade angle and loading force of an arrangement including a doctor apparatus (10) operating in connection with a rotating cylinder (19), the apparatus having a doctor blade (18) and a support member (2) which pivots about at least one pivot point (A1, ) in response to an externally applied force for applying the doctor blade (18) to a.

That’s why our doctor blades, blade holders and doctor systems have built a worldwide reputation for performance, durability and value Blade Holders All of Essco's blade holders are manufactured using 316L stainless steel The heavy duty construction of our holders provides the rugged durability and performance Essco is known for. Kadant Solutions, a division of Kadant Inc, launched its new AngleSet angle gauge tool for doctor blade and scraper installations The new AngleSet gauge is used to set the proper angle for doctor blades and scrapers for improved doctoring performance and longer blade life In addition, using the correct blade angle can extend the life of the roll. Angle Gauge PrimeBlade are now proud to offer a tool that helps gravure printers to better be able to know the set doctor blade angle Contact WINDMÖLLER & HÖLSCHER AUSTRIA CEE GMBH & CO KG KarlPopperStrasse 8, Top 303 Austria 1100 Wien Tel 49 5481 140 Mail office_austriacee@wuhgroupcom.

Here you have a short tutorial with useful hints. Gravure industry recommends a doctor blade contact angle of approximately 55 to 65 degrees Flat angles create a greater contact area, thereby increasing hazing and dragouts. The doctor blade is at an acute angle from its tangential line of contact and it scrapes the ink off the roller’s surface To make it simpler it looks more familiar in a press setting As we look at the slide this will leave a lubricating ink film on the roller, extending blade life.

We always got the question How to adjust the doctor blades for rotary pad printing automations perfectly?. Chosen by some for flexo, however the flexo doctoring angle leaves the fine gauge open to flexing under pressure This can be a problem NOTE SELECTING CORRECT DOCTORING ANGLE OF THE BLADE IS AN ESSENTIAL. 116 of 496 results for "blade angle finder" Best Seller in Angle Gauges Wixey Digital Angle Gauge Type 2 with Magnetic Base and Backlight 47 out of 5 stars 3,093 $2699 $ 26 99 $3499 $3499 Get it as soon as Wed, Oct 21 FREE Shipping by Amazon.

End Seals for Ink Metering Chambers;. The doctor blade angle will be measured by the tangent of the cylinder Read the blade angle on the angle scale and if necessary set the doctor blade once again Empirical value The contact zone angle of doctor blade, normally should be situated between 55° and 65° The machine has to be switched off, if you work with the setting gauge for. Angle gauge Posted by Eugene Sanders on Jun 24th Useful, functional and accurate Posted by Dr David J Matheson on Nov 2nd 19 Still great!!.

Ink Carts Service Carts;. Pumps Single Head Pump;. Kadant Solutions, a division of Kadant Inc, launched its new AngleSet angle gauge tool for doctor blade and scraper installations The new AngleSet gauge is used to set the proper angle for doctor blades and scrapers for improved doctoring performance and longer blade life In addition, using the correct blade angle can extend the life of the roll.

Blade Cutters Blade Cutters;. Here you have a short tutorial with useful hints. We always got the question How to adjust the doctor blades for rotary pad printing automations perfectly?.

Angle gauge Posted by Eugene Sanders on Jun 24th Useful, functional and accurate Posted by Dr David J Matheson on Nov 2nd 19 Still great!!. End Seals for Ink Metering Chambers;. The AngleSet gauge is used to set the proper angle for doctor, roll cleaning, and scraper blades for improved performance and extended blade life Using the correct blade angle can optimize the life of the roll The AngleSet gauge provides an accurate reading of the blade angle to / 010 and features a largeformat LCD display.

Doctor Blade Steel Our strip steel for doctor blades uses high grade steel and is manufactured with precision, making it a key component for ensuring reliable processes in the printing industry Manufacturers of doctor blades used in gravure or flexographic printing for example, appreciate the consistent quality of our strip steel for doctor. Filtration QUBE Filter Vessel;. Doctor Blades MFLEX I;.

Doctor and roll cleaning blades are used to clean rolls and remove stock accumulations, water, pitch, and filler buildup Since doctor and roll cleaning blades are used in a variety of industries including paper, tissue, carbon fiber, chemical, food, beverage, corrugating, construction, metals, textiles and nonwovens, it is important to make sure each blade angle is set appropriately for the job. Blade angle is critical for a doctor, and is obtained by using a measuring gauge Set the angle at an accuracy of 1° The angles on the front and back sides must match at an accuracy of 05° Steam heated crosswalk runs underneath the doctor beam (view from tend side). China mm Mdc Angle Gauge for Printing Doctor Blade, Find details about China Mdc Angle Gauge, Angle Gauge from mm Mdc Angle Gauge for Printing Doctor Blade Shantou Jielian Tech Co, Ltd.

The doctor blade angle will be measured by the tangent of the cylinder Read the blade angle on the angle scale and if necessary set the doctor blade once again Empirical value The contact zone angle of doctor blade, normally should be situated between 55° and 65° The machine has to be switched off, if you work with the setting gauge for. Doctor blades are used to clean rolls and remove stock accumulations, water, pitch, and filler buildup Since paper, tissue, chemical, food, beverage, corrugating, construction, metals, textiles and nonwovens, it is important to make sure each. Features and Benefits CPM 10V (A01) replaceable doubleended blades with an overall longer life than carbide Option to Add to Cart Stuart Batty 1/2" Skew Chisel.

Coldwater offers an extensive line of high performance doctor blades from metals and phenolics to epoxy glass and carbon fibers All of our blade and tubing products are cobranded with our partners at Lantier We provide doctor blades, creping blades, coater and sealing blades, and tubing as well as Lantier doctoring equipment. Blade Guard Blade Guard;. Features and Benefits CPM 10V (A01) replaceable doubleended blades with an overall longer life than carbide Option to Add to Cart Stuart Batty 1/2" Skew Chisel.

Kadant Solutions (Auburn, MA) has launched the AngleSet angle gauge tool for doctor blade and scraper installations The new gauge is used to set the proper angle for improved doctoring performance and longer blade life The AngleSet tool provides an accurate reading of the blade angle, and its compact design allows for flexibility in various applications, including creping, coating, drum. Suitable for the standard octagonal doctor blades boxes size (for a correct use, the doctor blades must be tied together) BONANGLE Electronic angle measurer for an accurate positioning and alignment of the doctoring systems BONPULL Easy and efficient stainless steel tool, designed to extract blades from the blade holders. Suitable for the standard octagonal doctor blades boxes size (for a correct use, the doctor blades must be tied together) BONANGLE Electronic angle measurer for an accurate positioning and alignment of the doctoring systems BONPULL Easy and efficient stainless steel tool, designed to extract blades from the blade holders.

Common problems caused by lower quality or incorrect type of doctor blades include scoring of the anilox roller and UV ink spitting Using a fitforpurpose doctor blade will prevent issues, and it does not pay off to save on your metering equipment By Neel Madsen Cutting corners is never advisable in flexo printing a process that relies heavily on getting each element right in order for. Mm MDC Setting Gauge Gor Doctor Blade Angle/Measuring Angle Gauge, US $ 450 5 / Unit, Swaziland, MDC, mmSource from Shantou Wingtai Packing Equipment Co, Ltd on Alibabacom. Blade Cutters Blade Cutters;.

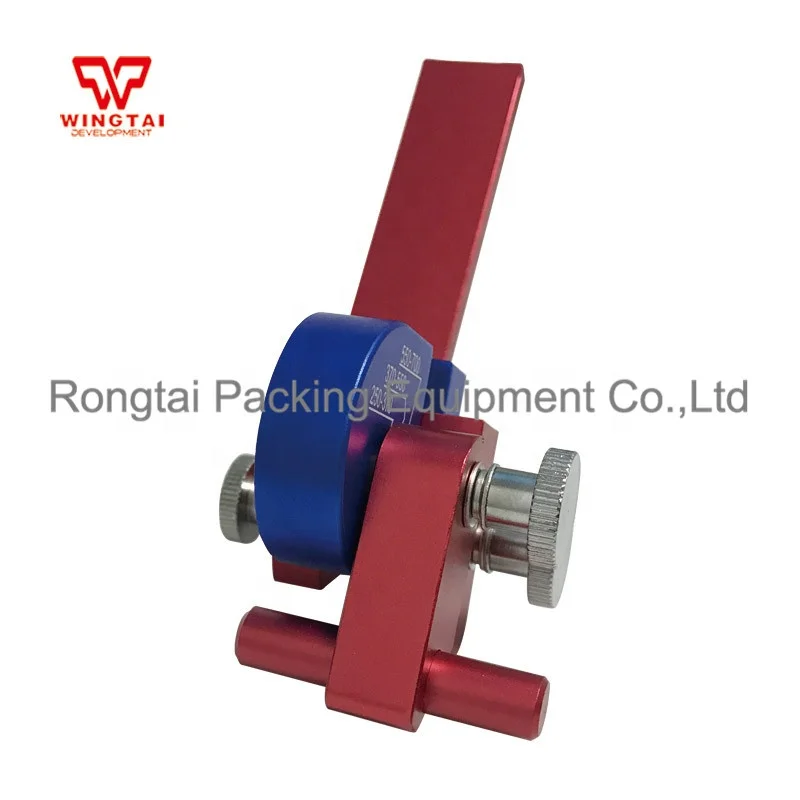

Mm MDC Setting Gauge Gor Doctor Blade Angle/Measuring Angle Gauge, US $ 450 5 / Unit, Swaziland, MDC, mmSource from Shantou Wingtai Packing Equipment Co, Ltd on Alibabacom. Usually the target is about a 30° angle For an enclosed doctor blade chamber this is already set at a predetermined angle For a reverseangle doctor blade a 3035° range is recommended Ultimately the operator should set the blade angle to ensure metering is optimized for the given metering system, anilox cylinder and ink type. SQCP600, SQCV600 and SQCB600 Carbon Steel Doctor Blade Fine structure combines micro particle wear with durability/flexibility;.

Doctor and roll cleaning blades are used to clean rolls and remove stock accumulations, water, pitch, and filler buildup Since doctor and roll cleaning blades are used in a variety of industries including paper, tissue, carbon fiber, chemical, food, beverage, corrugating, construction, metals, textiles and nonwovens, it is important to make sure each blade angle is set appropriately for the job. Blade Guard Blade Guard;. Until the late 1950s, all doctor blades were of the metal type In the late 1950s a phenol formaldehyde resin called Bakelite was taken into use as a doctor blade material It took many years for this material to become accepted for doctor blades since its cost in those early days was relatively high compared to metal.

Installing your TruPoint Orange doctor blade incorrectly will result in disaster Well, not really But it will create headaches for the press operator and waste valuable resources It will also prevent you from getting the maximum value from your doctor blade investment The TruPoint Orange doctor blade is a lifesaver in many pressrooms when it. Starrett Micrometers, Gages, Machinist Tools, Force Measurement, Precision Granite, Video Measurement, Optical Comparators, Band Saw, Jobsite Tools. Wixey Digital Readout Products Planer Readout, Angle Gauges, Saw Fence Digital Readout, Digital Calipers with Fractions, Remote Planer Readout, Remote Router Readout.

Pumps Single Head Pump;. The angle gauges were then crosscut to length The length was determined by measuring the distance from the centerline of the rear face of the propeller blade to the top of the recess ledge This distance does not change with blade angle changes Each angle gauge is the same height at the center of the angled side I made five angle gauges in 0. A method and system of measuring deflected doctor blade angle and loading force of an arrangement including a doctor apparatus operating in connection with a rotating cylinder, the apparatus having a doctor blade and a support member which pivots about at least one pivot point in response to an externally applied force for applying the doctor blade to a contact point on the cylinder.

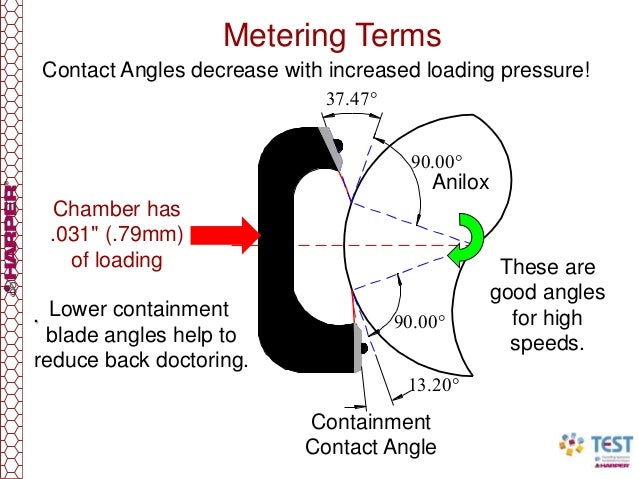

A generally acceptable flexo doctor blade contact angle range is 25 to 42 degrees, depending on the system A doctor blade contact angle of 30 degrees is a nominal good angle use a plastic feeler gauge to set the blade pressure Gradually increase the air pressure until the feeler gauge fits snugly between the blade tip and anilox Use the. Mm MDC Setting Gauge Gor Doctor Blade Angle/Measuring Angle Gauge, US $ 450 5 / Unit, Swaziland, MDC, mmSource from Shantou Wingtai Packing Equipment Co, Ltd on Alibabacom. Products/Services for Doctor Blade Angle Indicators Dimensional Indicators and Comparators (2 companies) Dimensional indicators and comparators are instruments for comparative measurements where the linear movement of a precision spindle is amplified and displayed on a dial or digital display.

The blade angle on dryer doctors is typically set to 25° to 30° This angle is especially important on sheet shedding positions, where the recom mended angle is about 28° Blade angles are easily measured using modern digital gauges as shown in the figure below The most common device for setting doctor blade angles is the AngleSet™ gauge. Doctor Blades MFLEX I;. The doctor blade is at an acute angle from its tangential line of contact and it scrapes the ink off the roller’s surface To make it simpler it looks more familiar in a press setting As we look at the slide this will leave a lubricating ink film on the roller, extending blade life.

Coldwater offers an extensive line of high performance doctor blades from metals and phenolics to epoxy glass and carbon fibers All of our blade and tubing products are cobranded with our partners at Lantier We provide doctor blades, creping blades, coater and sealing blades, and tubing as well as Lantier doctoring equipment. PrimeBlade are now proud to offer a tool that helps gravure printers to better be able to know the set doctor blade angle The angle gauge is produced in a size that the operator can keep it in their pocket and is handy to use when changing doctor blades The PrimeBlade Angle Gauge comes in two sizes One from circumference 300mm to 785mm and the other from circumference 785mm to >6280mm. Common problems caused by lower quality or incorrect type of doctor blades include scoring of the anilox roller and UV ink spitting Using a fitforpurpose doctor blade will prevent issues, and it does not pay off to save on your metering equipment By Neel Madsen Cutting corners is never advisable in flexo printing a process that relies heavily on getting each element right in order for.

This disclosure relates to a novel method of and means for automatically and repetitiously increasing and decreasing doctor blade/cylinder contact pressure and doctor blade/cylinder angle to lessen or prevent ''''coverage'''', ie, the presence of ink haze in the nonimage area of a print. Features and Benefits CPM 10V (A01) replaceable doubleended blades with an overall longer life than carbide Option to Add to Cart Stuart Batty 1/2" Skew Chisel. Blade angle and anilox contact point are essential in controlling ink spitting A longlife doctor blade results in blade and end seal costs of approximately $360 per setup, while a standard blade package is more economical at roughly $150.

Klein Tools Digital Angle Gauge and Level The Klein Tools Digital Angle Gauge and Level can measure or set angles, check relative angles or can be used as a digital level It has strong magnetic base I know this is designed for electricians which I am not None the less I think it is a great tool to have in any toolbox. Doctor Blade Angle Gauge Our blade angle gauge allows experienced operators to achieve the optimal 60 degree blade angle setting for print excellence At this bladetocylinder contact engagement angle, issues like streaks, haze, fog and dot fillin risks are greatly reduced.
